146134-4
Manufacturer:
TE Connectivity
Mfr.Part #:
146134-4
Datasheet:
Description:

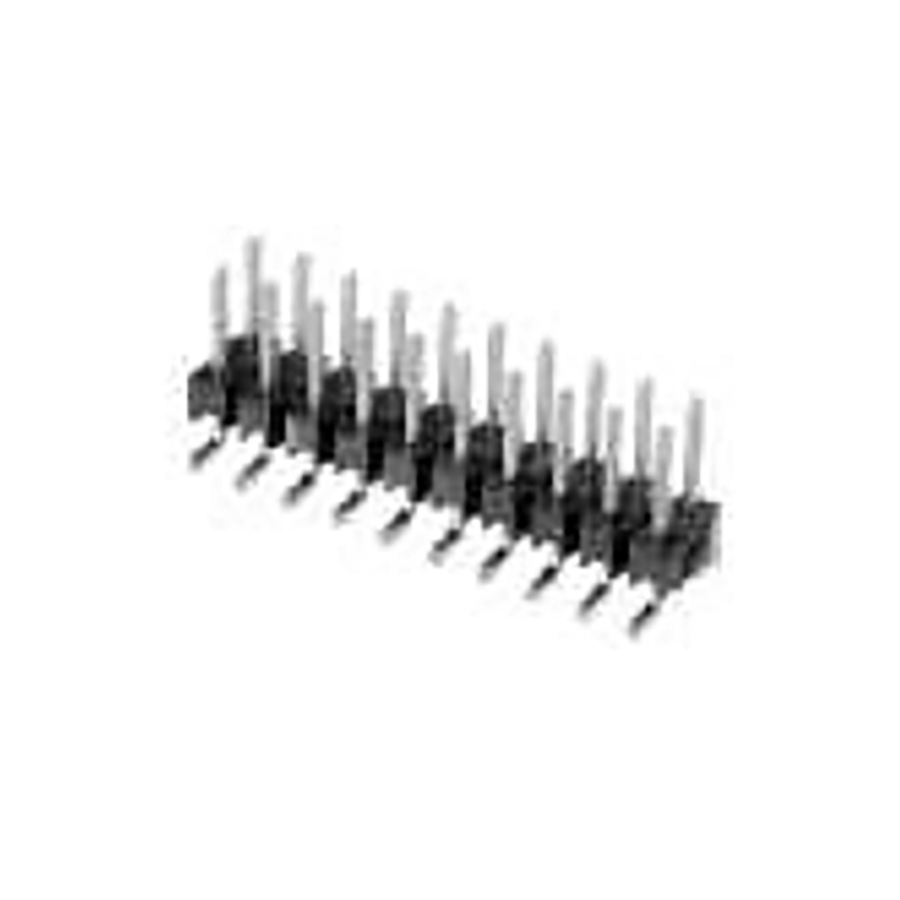

Headers and Wire Housings SMD/SMT Header, Pin, Plug Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.29 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Tube |
| Depth | 7.42 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Lead, Nickel, Tin |
| Lead Length | 2.29 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Operating Supply Voltage | 30 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| ELV | Non-Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Style | Pin |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Keyed | No |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.5748 mm |
| Contact Gender | Male |
| High Temperature Housing | Yes |
| Mating Post Length | 5.842 mm |
| Contact Shape | Square |
| High Speed Serial Data Connector | No |
| High Temperature Compatible | Yes |
Stock: 408
Distributors
pcbx
pcbxUnit Price$0.43773
Ext.Price$0.43773
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.43773 | $0.43773 |
| 10 | $0.39327 | $3.93270 |
| 25 | $0.38386 | $9.59650 |
| 50 | $0.36180 | $18.09000 |
| 100 | $0.34101 | $34.10100 |
| 300 | $0.32141 | $96.42300 |
| 500 | $0.30294 | $151.47000 |
| 1000 | $0.28554 | $285.54000 |
